pq::AnalogIn Class Reference

A generic class representing a simple analog input. More...

#include <PqInputs.h>

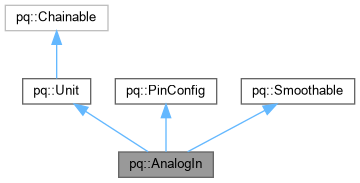

Inheritance diagram for pq::AnalogIn:

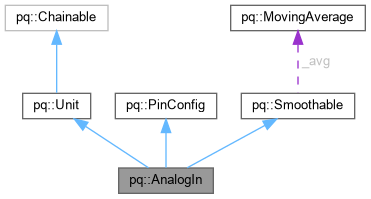

Collaboration diagram for pq::AnalogIn:

Public Member Functions
	AnalogIn (uint8_t pin, Engine &engine=Engine::primary())
	Constructor.
	AnalogIn (uint8_t pin, uint8_t mode, Engine &engine=Engine::primary())
virtual float	get ()
	Returns value in [0, 1].
virtual float	mapTo (float toLow, float toHigh)
	Maps value to new range.
float	read () const
	Direcly reads value from the pin (bypasses mode, smoothing, and engine).
int	rawRead () const
	Directly reads raw value from the pin (bypasses mode, smoothing, and engine).
virtual void	clearEvents ()
float	seconds () const
	Returns engine time in seconds.
uint32_t	milliSeconds () const
	Returns engine time in milliseconds.
uint64_t	microSeconds () const
	Returns engine time in microseconds.
unsigned long	nSteps () const
	Returns number of engine steps.
float	sampleRate () const
	Returns engine sample rate.
float	samplePeriod () const
	Returns enginesample period.
	operator float ()
	Object can be used directly to access its value.
virtual float	put (float value)
	Pushes value into the unit.
	operator bool ()
	Operator that allows usage in conditional expressions.
uint8_t	pin () const
	Returns the pin this component is attached to.
uint8_t	mode () const
	Returns the mode of the component.
virtual void	mode (uint8_t mode)
	Changes the mode of the component.
virtual void	smooth (float smoothTime=PLAQUETTE_DEFAULT_SMOOTH_WINDOW)
	Apply smoothing to object.
virtual void	noSmooth ()
	Remove smoothing.
virtual void	timeWindow (float seconds)
	Changes the smoothing window (expressed in seconds).
float	timeWindow () const
	Returns the smoothing window (expressed in seconds).
virtual void	cutoff (float hz)
	Changes the smoothing window cutoff frequency (expressed in Hz).
float	cutoff () const
	Returns the smoothing window cutoff frequency (expressed in Hz).

Static Public Member Functions
static bool	analogToDigital (float f)
	Converts analog (float) value to digital (bool) value.
static float	digitalToAnalog (bool b)
	Converts digital (bool) value to analog (float) value.

Protected Member Functions
virtual void	begin ()
virtual void	step ()
virtual float	_read ()
virtual float	_sampleRate () const
virtual bool	eventTriggered (EventType eventType)
	Returns true iff an event of a certain type has been triggered.
virtual void	onEvent (EventCallback callback, EventType eventType)
	Registers event callback.
Engine *	engine () const
	Returns the engine that owns this unit.
virtual void	_begin ()
virtual void	_step ()
virtual float	_smoothed ()

Protected Attributes
uint8_t	_pin
uint8_t	_mode
MovingAverage	_avg

Detailed Description

A generic class representing a simple analog input.

Constructor & Destructor Documentation

AnalogIn()

pq::AnalogIn::AnalogIn	(	uint8_t	pin,
		Engine &	engine = Engine::primary()
	)

Constructor.

Parameters

pin	the pin number
mode	the mode (DIRECT or INVERTED)

Member Function Documentation

_read()

float pq::AnalogIn::_read ( )

protectedvirtual

Implements pq::Smoothable.

_sampleRate()

virtual float pq::AnalogIn::_sampleRate ( ) const

inlineprotectedvirtual

Implements pq::Smoothable.

begin()

void pq::AnalogIn::begin ( )

protectedvirtual

Reimplemented from pq::Unit.

eventTriggered()

virtual bool pq::Unit::eventTriggered ( EventType  eventType )

inlineprotectedvirtualinherited

Returns true iff an event of a certain type has been triggered.

Reimplemented in pq::AbstractWave, pq::Alarm, pq::Metronome, pq::PeakDetector, pq::DigitalSource, pq::Ramp, pq::StreamIn, and pq::TimeSliceField< COUNT >.

get()

virtual float pq::AnalogIn::get ( )

inlinevirtual

Returns value in [0, 1].

Reimplemented from pq::Chainable.

mapTo()

float pq::AnalogIn::mapTo ( float  toLow, float  toHigh  )

virtual

Maps value to new range.

Reimplemented from pq::Chainable.

mode()

virtual void pq::PinConfig::mode ( uint8_t  mode )

inlinevirtualinherited

Changes the mode of the component.

Reimplemented in pq::DigitalIn, and pq::DigitalOut.

put()

virtual float pq::Chainable::put ( float  value )

inlinevirtualinherited

Pushes value into the unit.

Parameters

value

the value sent to the unit

Returns

the new value of the unit

Reimplemented in pq::Chronometer, pq::MinMaxScaler, pq::Normalizer, pq::PeakDetector, pq::DigitalUnit, pq::AnalogOut, pq::AbstractServoOut, pq::Ramp, pq::Smoother, pq::StreamOut, pq::PivotField, and pq::TimeSliceField< COUNT >.

step()

void pq::AnalogIn::step ( )

protectedvirtual

Reimplemented from pq::Unit.

---

The documentation for this class was generated from the following files:

• /home/tats/Documents/workspace/Plaquette/src/PqInputs.h
• /home/tats/Documents/workspace/Plaquette/src/PqInputs.cpp
