Provides a ramping / tweening mechanism that allows smooth transitions between two values. More...

#include <Ramp.h>

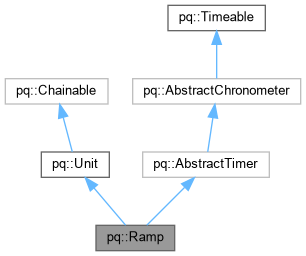

Inheritance diagram for pq::Ramp:

[legend]

Collaboration diagram for pq::Ramp:

[legend]

Public Member Functions
	Ramp (Engine &engine=Engine::primary())
	Constructor.

	Ramp (float duration, Engine &engine=Engine::primary())
	Constructor with duration.

virtual float	get ()
	Returns value of ramp.

virtual float	put (float value)
	Forces value in the ramp.

virtual float	mapTo (float toLow, float toHigh)
	Maps value to new range.

void	easing (easing_function easing)
	Sets easing function to apply to ramp.

void	noEasing ()
	Remove easing function (linear/no easing).

virtual void	to (float to)
	Assign final value of the ramp starting from current value.

virtual void	from (float from)
	Assign initial value of the ramp.

virtual void	fromTo (float from, float to)
	Assign initial and final values of the ramp.

virtual void	duration (float duration)
	Sets the duration of the chronometer.

virtual float	duration () const
	Returns duration.

virtual void	speed (float speed)
	Sets the speed (rate of change) of the ramp in change-per-second.

virtual float	speed () const
	Returns speed (rate of change) of the ramp in change-per-second.

virtual void	start ()
	Starts/restarts the ramp. Will repeat the last ramp.

virtual void	go (float from, float to, float durationOrSpeed, easing_function easing=0)
	Starts a new ramp.

virtual void	go (float to, float durationOrSpeed, easing_function easing=0)
	Starts a new ramp, starting from current value.

virtual void	go (float to, easing_function easing=0)
	Starts a new ramp, starting from current value (keeping the same duration/speed).

virtual void	mode (uint8_t mode)
	Changes the mode of the component (RAMP_DURATION or RAMP_SPEED).

uint8_t	mode () const
	Returns the mode of the component (RAMP_DURATION or RAMP_SPEED).

virtual bool	finished ()
	Returns true iff the ramp just finished its process this step.

virtual void	onFinish (EventCallback callback)
	Registers event callback on finish event.

virtual void	setTime (float time)
	Forces current time (in seconds).

float	durationToSpeed (float duration) const
	Returns speed based on duration.

float	speedToDuration (float speed) const
	Returns duration based on speed.

virtual void	start (float to, float durationOrSpeed, easing_function easing=0)

virtual void	start (float from, float to, float durationOrSpeed, easing_function easing=0)

virtual void	clearEvents ()

float	seconds () const
	Returns engine time in seconds.

uint32_t	milliSeconds () const
	Returns engine time in milliseconds.

uint64_t	microSeconds () const
	Returns engine time in microseconds.

unsigned long	nSteps () const
	Returns number of engine steps.

float	sampleRate () const
	Returns engine sample rate.

float	samplePeriod () const
	Returns enginesample period.

	operator float ()
	Object can be used directly to access its value.

	operator bool ()
	Operator that allows usage in conditional expressions.

virtual void	start (float duration)
	Starts/restarts the chronometer with specific duration.

virtual float	progress () const
	The progress of the timer process (in %).

virtual bool	isFinished () const
	Returns true iff the chronometer has finished its process.

virtual bool	isComplete () const

virtual void	pause ()
	Interrupts the chronometer.

virtual void	resume ()
	Resumes process.

virtual float	elapsed () const
	The time currently elapsed by the chronometer (in seconds).

virtual bool	hasPassed (float timeout) const
	Returns true iff elapsed time has passed given timeout.

virtual bool	hasPassed (float timeout, bool restartIfPassed)

virtual void	addTime (float time)
	Adds/subtracts time to the chronometer.

virtual bool	isRunning () const
	Returns true iff the chronometer is currently running.

bool	isStarted () const

virtual void	stop ()
	Interrupts the chronometer and resets to zero.

virtual void	togglePause ()
	Toggles pause/unpause.

Static Public Member Functions
static bool	analogToDigital (float f)
	Converts analog (float) value to digital (bool) value.

static float	digitalToAnalog (bool b)
	Converts digital (bool) value to analog (float) value.

Protected Member Functions
virtual void	begin ()

virtual void	step ()

virtual bool	eventTriggered (EventType eventType)
	Returns true iff an event of a certain type has been triggered.

void	_durationOrSpeed (float durationOrSpeed)

float	_durationOrSpeed () const

virtual float	_time () const

virtual void	onEvent (EventCallback callback, EventType eventType)
	Registers event callback.

Engine *	engine () const
	Returns the engine that owns this unit.

virtual void	update ()

virtual void	_setRunning (bool isRunning)

Protected Attributes
float	_from

float	_to

float	_value

easing_function	_easing

float	_speed

uint8_t	_mode: 1

uint8_t	_finishedState: 2

bool	_valueNeedsUpdate: 1

uint8_t	_data: 4

float	_duration

float	_invDuration

float	_startTime

float	_offsetTime

float	_elapsedTime

bool	_isRunning

Detailed Description

Provides a ramping / tweening mechanism that allows smooth transitions between two values.

Constructor & Destructor Documentation

◆ Ramp() [1/2]

pq::Ramp::Ramp ( Engine & engine = Engine::primary() )

Constructor.

Parameters

engine the engine running this unit

◆ Ramp() [2/2]

pq::Ramp::Ramp	(	float	duration,
		Engine &	engine = `Engine::primary()`
	)

Constructor with duration.

Parameters

duration	duration of the ramp
engine	the engine running this unit

Member Function Documentation

◆ _setRunning()

virtual void pq::AbstractChronometer::_setRunning ( bool isRunning )

inlineprotectedvirtualinherited

Implements pq::Timeable.

◆ _time()

float pq::Ramp::_time ( ) const

protectedvirtual

Implements pq::AbstractChronometer.

◆ addTime()

void pq::AbstractChronometer::addTime ( float time )

virtualinherited

Adds/subtracts time to the chronometer.

Implements pq::Timeable.

◆ begin()

void pq::Ramp::begin ( )

protectedvirtual

Reimplemented from pq::Unit.

◆ duration() [1/2]

virtual float pq::Ramp::duration ( ) const

inlinevirtual

Returns duration.

Reimplemented from pq::AbstractTimer.

◆ duration() [2/2]

void pq::Ramp::duration ( float duration )

virtual

Sets the duration of the chronometer.

Reimplemented from pq::AbstractTimer.

◆ easing()

void pq::Ramp::easing ( easing_function easing )

Sets easing function to apply to ramp.

Parameters

easing the easing function

◆ eventTriggered()

virtual bool pq::Ramp::eventTriggered ( EventType eventType )

inlineprotectedvirtual

Returns true iff an event of a certain type has been triggered.

Reimplemented from pq::Unit.

◆ from()

void pq::Ramp::from ( float from )

virtual

Assign initial value of the ramp.

Parameters

from	the initial value

◆ fromTo()

void pq::Ramp::fromTo	(	float	from,
		float	to
	)

virtual

Assign initial and final values of the ramp.

Parameters

from	the initial value
to	the final value

◆ get()

float pq::Ramp::get ( )

virtual

Returns value of ramp.

Reimplemented from pq::Chainable.

◆ go() [1/3]

void pq::Ramp::go	(	float	from,
		float	to,
		float	durationOrSpeed,
		easing_function	easing = `0`
	)

virtual

Starts a new ramp.

Parameters

from	the initial value
to	the final value
durationOrSpeed	the duration of the ramp (in seconds) or speed (in change-per-second) depending on mode
easing	the easing function (optional).

◆ go() [2/3]

void pq::Ramp::go	(	float	to,
		easing_function	easing = `0`
	)

virtual

Starts a new ramp, starting from current value (keeping the same duration/speed).

Parameters

to	the final value
easing	the easing function (optional)

◆ go() [3/3]

void pq::Ramp::go	(	float	to,
		float	durationOrSpeed,
		easing_function	easing = `0`
	)

virtual

Starts a new ramp, starting from current value.

Parameters

to	the final value
durationOrSpeed	the duration of the ramp (in seconds) or speed (in change-per-second) depending on mode
easing	the easing function (optional)

◆ hasPassed()

bool pq::AbstractChronometer::hasPassed	(	float	timeout,
		bool	restartIfPassed
	)

virtualinherited

Deprecated:: Returns true iff elapsed time has passed given timeout (optional argument to automatically restart if true).

◆ isComplete()

virtual bool pq::AbstractTimer::isComplete ( ) const

inlinevirtualinherited

Deprecated:

◆ isRunning()

virtual bool pq::AbstractChronometer::isRunning ( ) const

inlinevirtualinherited

Returns true iff the chronometer is currently running.

Implements pq::Timeable.

◆ isStarted()

bool pq::AbstractChronometer::isStarted ( ) const

inlineinherited

Deprecated:

◆ mapTo()

float pq::Ramp::mapTo	(	float	toLow,
		float	toHigh
	)

virtual

Maps value to new range.

Reimplemented from pq::Chainable.

◆ pause()

void pq::AbstractChronometer::pause ( )

virtualinherited

Interrupts the chronometer.

Reimplemented from pq::Timeable.

◆ put()

float pq::Ramp::put ( float value )

virtual

Forces value in the ramp.

If this happens while the ramp is running, it will interrupt the ramp.

Parameters

value the value sent to the unit

Returns: the new value of the unit

Reimplemented from pq::Chainable.

◆ resume()

void pq::AbstractChronometer::resume ( )

virtualinherited

Resumes process.

Reimplemented from pq::Timeable.

◆ setTime()

void pq::Ramp::setTime ( float time )

virtual

Forces current time (in seconds).

Reimplemented from pq::AbstractChronometer.

◆ start() [1/3]

void pq::Ramp::start ( )

virtual

Starts/restarts the ramp. Will repeat the last ramp.

Reimplemented from pq::AbstractTimer.

◆ start() [2/3]

void pq::Ramp::start	(	float	from,
		float	to,
		float	durationOrSpeed,
		easing_function	easing = `0`
	)

virtual

Deprecated:

◆ start() [3/3]

void pq::Ramp::start	(	float	to,
		float	durationOrSpeed,
		easing_function	easing = `0`
	)

virtual

Deprecated:

◆ step()

void pq::Ramp::step ( )

protectedvirtual

Reimplemented from pq::Unit.

◆ to()

void pq::Ramp::to ( float to )

virtual

Assign final value of the ramp starting from current value.

Parameters

to	the final value

The documentation for this class was generated from the following files:

/home/tats/Documents/workspace/Plaquette/src/Ramp.h
/home/tats/Documents/workspace/Plaquette/src/Ramp.cpp
