pq::Timeable Class Reference

Abstract class for time-based objects. More...

#include <Timeable.h>

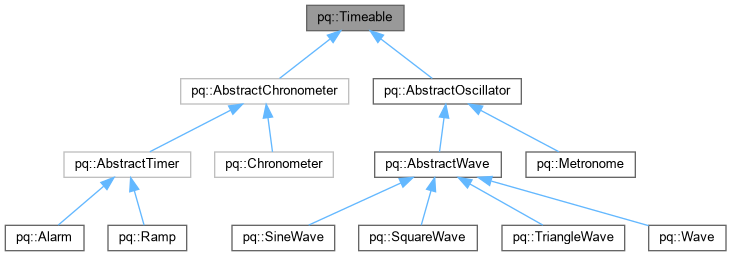

Inheritance diagram for pq::Timeable:

Public Member Functions
virtual void	start ()
	Starts/restarts the chronometer.
virtual void	stop ()
	Interrupts the chronometer and resets to zero.
virtual void	pause ()
	Interrupts the chronometer.
virtual void	resume ()
	Resumes process.
virtual void	togglePause ()
	Toggles pause/unpause.
virtual void	setTime (float time)=0
	Forces current time (in seconds).
virtual void	addTime (float time)=0
	Adds/subtracts time to the chronometer.
virtual bool	isRunning () const =0
	Returns true iff currently running.

Protected Member Functions
virtual void	_setRunning (bool isRunning)=0

Detailed Description

Abstract class for time-based objects.

Member Function Documentation

addTime()

virtual void pq::Timeable::addTime ( float  time )

pure virtual

Adds/subtracts time to the chronometer.

Implemented in pq::AbstractChronometer, and pq::AbstractOscillator.

isRunning()

virtual bool pq::Timeable::isRunning ( ) const

pure virtual

Returns true iff currently running.

Implemented in pq::AbstractChronometer, and pq::AbstractOscillator.

pause()

void pq::Timeable::pause ( )

virtual

Interrupts the chronometer.

Reimplemented in pq::AbstractChronometer.

resume()

void pq::Timeable::resume ( )

virtual

Resumes process.

Reimplemented in pq::AbstractChronometer.

setTime()

virtual void pq::Timeable::setTime ( float  time )

pure virtual

Forces current time (in seconds).

Implemented in pq::AbstractChronometer, pq::AbstractOscillator, pq::Alarm, and pq::Ramp.

start()

void pq::Timeable::start ( )

virtual

Starts/restarts the chronometer.

Reimplemented in pq::AbstractTimer, and pq::Ramp.

---

The documentation for this class was generated from the following files:

• /home/tats/Documents/workspace/Plaquette/src/Timeable.h
• /home/tats/Documents/workspace/Plaquette/src/Timeable.cpp
