Chronometer class which becomes "on" after a given duration. More...

#include <Alarm.h>

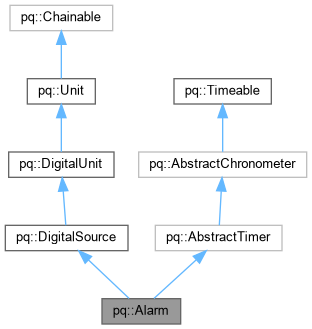

Inheritance diagram for pq::Alarm:

[legend]

Collaboration diagram for pq::Alarm:

[legend]

Public Member Functions
	Alarm (Engine &engine=Engine::primary())
	Constructor.

	Alarm (float duration, Engine &engine=Engine::primary())
	Constructor with duration.

virtual bool	finished ()
	Returns true iff the alarm just finished its process this step.

virtual void	onFinish (EventCallback callback)
	Registers event callback on finish event.

virtual void	setTime (float time)
	Set alarm at specific time.

virtual bool	isOn ()
	Returns true iff the input is "on".

virtual bool	putOn (bool value)
	Pushes value into the unit.

virtual bool	rose ()
	Returns true if the value rose.

virtual bool	fell ()
	Returns true if the value fell.

virtual bool	changed ()
	Returns true if the value changed.

virtual bool	toggle ()
	Switches between on and off.

virtual int8_t	changeState ()
	Difference between current and previous value of the unit.

virtual void	onRise (EventCallback callback)
	Registers event callback on rise event.

virtual void	onFall (EventCallback callback)
	Registers event callback on fall event.

virtual void	onChange (EventCallback callback)
	Registers event callback on change event.

virtual bool	isOff ()
	Returns true iff the input is "off".

virtual int	getInt ()
	Returns value as integer (0 or 1).

virtual float	get ()
	Returns value as float (either 0.0 or 1.0).

virtual bool	on ()
	Sets output to "on" (ie. true, 1).

virtual bool	off ()
	Sets output to "off" (ie. false, 0).

virtual float	put (float value)
	Pushes value into the unit.

virtual float	mapTo (float toLow, float toHigh)
	Maps value to new range.

	operator bool ()
	Operator that allows usage in conditional expressions.

	operator float ()

virtual void	clearEvents ()

float	seconds () const
	Returns engine time in seconds.

uint32_t	milliSeconds () const
	Returns engine time in milliseconds.

uint64_t	microSeconds () const
	Returns engine time in microseconds.

unsigned long	nSteps () const
	Returns number of engine steps.

float	sampleRate () const
	Returns engine sample rate.

float	samplePeriod () const
	Returns enginesample period.

virtual void	start ()
	Starts/restarts the chronometer.

virtual void	start (float duration)
	Starts/restarts the chronometer with specific duration.

virtual void	duration (float duration)
	Sets the duration of the chronometer.

virtual float	duration () const
	Returns duration.

virtual float	progress () const
	The progress of the timer process (in %).

virtual bool	isFinished () const
	Returns true iff the chronometer has finished its process.

virtual bool	isComplete () const

virtual void	pause ()
	Interrupts the chronometer.

virtual void	resume ()
	Resumes process.

virtual float	elapsed () const
	The time currently elapsed by the chronometer (in seconds).

virtual bool	hasPassed (float timeout) const
	Returns true iff elapsed time has passed given timeout.

virtual bool	hasPassed (float timeout, bool restartIfPassed)

virtual void	addTime (float time)
	Adds/subtracts time to the chronometer.

virtual bool	isRunning () const
	Returns true iff the chronometer is currently running.

bool	isStarted () const

virtual void	stop ()
	Interrupts the chronometer and resets to zero.

virtual void	togglePause ()
	Toggles pause/unpause.

Static Public Member Functions
static bool	analogToDigital (float f)
	Converts analog (float) value to digital (bool) value.

static float	digitalToAnalog (bool b)
	Converts digital (bool) value to analog (float) value.

Protected Member Functions
virtual void	begin ()

virtual void	step ()

virtual bool	eventTriggered (EventType eventType)
	Returns true iff an event of a certain type has been triggered.

virtual float	_time () const

void	_updateChangeState ()

virtual void	onEvent (EventCallback callback, EventType eventType)
	Registers event callback.

Engine *	engine () const
	Returns the engine that owns this unit.

virtual void	update ()

virtual void	_setRunning (bool isRunning)

Protected Attributes
bool	_onValue: 1

bool	_prevOnValue: 1

int8_t	_changeState: 2

uint8_t	_data: 4

float	_duration

float	_invDuration

float	_startTime

float	_offsetTime

float	_elapsedTime

bool	_isRunning

Detailed Description

Chronometer class which becomes "on" after a given duration.

Constructor & Destructor Documentation

◆ Alarm() [1/2]

pq::Alarm::Alarm ( Engine & engine = Engine::primary() )

Constructor.

Parameters

engine the engine running this unit

◆ Alarm() [2/2]

pq::Alarm::Alarm	(	float	duration,
		Engine &	engine = `Engine::primary()`
	)

Constructor with duration.

Parameters

duration	duration of the alarm
engine	the engine running this unit

Member Function Documentation

◆ _setRunning()

virtual void pq::AbstractChronometer::_setRunning ( bool isRunning )

inlineprotectedvirtualinherited

Implements pq::Timeable.

◆ _time()

float pq::Alarm::_time ( ) const

protectedvirtual

Implements pq::AbstractChronometer.

◆ addTime()

void pq::AbstractChronometer::addTime ( float time )

virtualinherited

Adds/subtracts time to the chronometer.

Implements pq::Timeable.

◆ begin()

void pq::Alarm::begin ( )

protectedvirtual

Reimplemented from pq::Unit.

◆ duration() [1/2]

virtual float pq::AbstractTimer::duration ( ) const

inlinevirtualinherited

Returns duration.

Reimplemented in pq::Ramp.

◆ duration() [2/2]

void pq::AbstractTimer::duration ( float duration )

virtualinherited

Sets the duration of the chronometer.

Reimplemented in pq::Ramp.

◆ eventTriggered()

virtual bool pq::Alarm::eventTriggered ( EventType eventType )

inlineprotectedvirtual

Returns true iff an event of a certain type has been triggered.

Reimplemented from pq::DigitalSource.

◆ get()

virtual float pq::DigitalUnit::get ( )

inlinevirtualinherited

Returns value as float (either 0.0 or 1.0).

Reimplemented from pq::Chainable.

◆ hasPassed()

bool pq::AbstractChronometer::hasPassed	(	float	timeout,
		bool	restartIfPassed
	)

virtualinherited

Deprecated:: Returns true iff elapsed time has passed given timeout (optional argument to automatically restart if true).

◆ isComplete()

virtual bool pq::AbstractTimer::isComplete ( ) const

inlinevirtualinherited

Deprecated:

◆ isOn()

virtual bool pq::DigitalSource::isOn ( )

inlinevirtualinherited

Returns true iff the input is "on".

Reimplemented from pq::DigitalUnit.

◆ isRunning()

virtual bool pq::AbstractChronometer::isRunning ( ) const

inlinevirtualinherited

Returns true iff the chronometer is currently running.

Implements pq::Timeable.

◆ isStarted()

bool pq::AbstractChronometer::isStarted ( ) const

inlineinherited

Deprecated:

◆ mapTo()

virtual float pq::DigitalUnit::mapTo	(	float	toLow,
		float	toHigh
	)

inlinevirtualinherited

Maps value to new range.

Reimplemented from pq::Chainable.

◆ pause()

void pq::AbstractChronometer::pause ( )

virtualinherited

Interrupts the chronometer.

Reimplemented from pq::Timeable.

◆ put()

virtual float pq::DigitalUnit::put ( float value )

inlinevirtualinherited

Pushes value into the unit.

Parameters

value the value sent to the unit

Returns: the new value of the unit

Reimplemented from pq::Chainable.

Reimplemented in pq::PeakDetector.

◆ putOn()

virtual bool pq::DigitalSource::putOn ( bool value )

inlinevirtualinherited

Pushes value into the unit.

Parameters

value the value sent to the unit

Returns: the new value of the unit

Reimplemented from pq::DigitalUnit.

◆ resume()

void pq::AbstractChronometer::resume ( )

virtualinherited

Resumes process.

Reimplemented from pq::Timeable.

◆ setTime()

void pq::Alarm::setTime ( float time )

virtual

Set alarm at specific time.

Reimplemented from pq::AbstractChronometer.

◆ start()

void pq::AbstractTimer::start ( )

virtualinherited

Starts/restarts the chronometer.

Reimplemented from pq::Timeable.

Reimplemented in pq::Ramp.

◆ step()

void pq::Alarm::step ( )

protectedvirtual

Reimplemented from pq::Unit.

The documentation for this class was generated from the following files:

/home/tats/Documents/workspace/Plaquette/src/Alarm.h
/home/tats/Documents/workspace/Plaquette/src/Alarm.cpp
