A generic class representing a simple digital input. More...

#include <PqInputs.h>

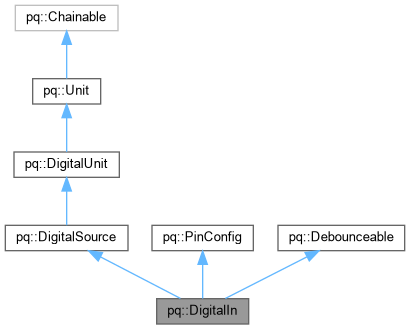

Inheritance diagram for pq::DigitalIn:

[legend]

Collaboration diagram for pq::DigitalIn:

[legend]

Public Member Functions
	DigitalIn (uint8_t pin, Engine &engine=Engine::primary())
	Constructor.

	DigitalIn (uint8_t pin, uint8_t mode, Engine &engine=Engine::primary())

virtual void	mode (uint8_t mode)
	Changes the mode of the component.

float	read () const
	Directly reads value from the pin as 1 or 0 (bypasses mode, debounce, and engine).

int	rawRead () const
	Directly reads raw value from the pin as HIGH or LOW (bypasses mode, debounce, and engine).

virtual bool	isOn ()
	Returns true iff the input is "on".

virtual bool	putOn (bool value)
	Pushes value into the unit.

virtual bool	rose ()
	Returns true if the value rose.

virtual bool	fell ()
	Returns true if the value fell.

virtual bool	changed ()
	Returns true if the value changed.

virtual bool	toggle ()
	Switches between on and off.

virtual int8_t	changeState ()
	Difference between current and previous value of the unit.

virtual void	onRise (EventCallback callback)
	Registers event callback on rise event.

virtual void	onFall (EventCallback callback)
	Registers event callback on fall event.

virtual void	onChange (EventCallback callback)
	Registers event callback on change event.

virtual bool	isOff ()
	Returns true iff the input is "off".

virtual int	getInt ()
	Returns value as integer (0 or 1).

virtual float	get ()
	Returns value as float (either 0.0 or 1.0).

virtual bool	on ()
	Sets output to "on" (ie. true, 1).

virtual bool	off ()
	Sets output to "off" (ie. false, 0).

virtual float	put (float value)
	Pushes value into the unit.

virtual float	mapTo (float toLow, float toHigh)
	Maps value to new range.

	operator bool ()
	Operator that allows usage in conditional expressions.

	operator float ()

virtual void	clearEvents ()

float	seconds () const
	Returns engine time in seconds.

uint32_t	milliSeconds () const
	Returns engine time in milliseconds.

uint64_t	microSeconds () const
	Returns engine time in microseconds.

unsigned long	nSteps () const
	Returns number of engine steps.

float	sampleRate () const
	Returns engine sample rate.

float	samplePeriod () const
	Returns enginesample period.

uint8_t	pin () const
	Returns the pin this component is attached to.

uint8_t	mode () const
	Returns the mode of the component.

virtual void	debounce (float debounceTime=PLAQUETTE_DEFAULT_DEBOUNCE_WINDOW)
	Apply smoothing to object.

virtual void	noDebounce ()
	Remove smoothing.

virtual void	smooth (float smoothTime=PLAQUETTE_DEFAULT_DEBOUNCE_WINDOW)
	Deprecated. Left for backwards compatibility.

virtual void	noSmooth ()
	Remove smoothing.

virtual void	timeWindow (float seconds)
	Changes the debouncing window (expressed in seconds).

float	timeWindow () const
	Returns the debouncing window (expressed in seconds).

uint8_t	debounceMode () const
	Returns the debounce mode.

void	debounceMode (uint8_t mode)
	Sets debounce mode.

Static Public Member Functions
static bool	analogToDigital (float f)
	Converts analog (float) value to digital (bool) value.

static float	digitalToAnalog (bool b)
	Converts digital (bool) value to analog (float) value.

Protected Member Functions
virtual bool	_isOn ()

virtual float	_time () const

virtual void	_init ()

virtual void	begin ()

virtual void	step ()

void	_updateChangeState ()

virtual bool	eventTriggered (EventType eventType)
	Returns true iff an event of a certain type has been triggered.

virtual void	onEvent (EventCallback callback, EventType eventType)
	Registers event callback.

Engine *	engine () const
	Returns the engine that owns this unit.

virtual void	_begin ()

virtual void	_step ()

virtual bool	_debounced ()

void	_changeState ()

void	_setStateFlag (const uint8_t flag)

void	_unsetStateFlag (const uint8_t flag)

void	_toggleStateFlag (const uint8_t flag)

bool	_getStateFlag (const uint8_t flag)

Protected Attributes
bool	_onValue: 1

bool	_prevOnValue: 1

int8_t	_changeState: 2

uint8_t	_data: 4

uint8_t	_pin

uint8_t	_mode

float	_interval

float	_startTime

uint8_t	_state

uint8_t	_debounceMode

Detailed Description

A generic class representing a simple digital input.

Constructor & Destructor Documentation

◆ DigitalIn()

pq::DigitalIn::DigitalIn	(	uint8_t	pin,
		Engine &	engine = `Engine::primary()`
	)

Constructor.

Parameters

pin	the pin number
mode	the mode (DIRECT, INVERTED, or INTERNAL_PULLUP)

Member Function Documentation

◆ _isOn()

bool pq::DigitalIn::_isOn ( )

protectedvirtual

Implements pq::Debounceable.

◆ _time()

virtual float pq::DigitalIn::_time ( ) const

inlineprotectedvirtual

Implements pq::Debounceable.

◆ begin()

void pq::DigitalIn::begin ( )

protectedvirtual

Reimplemented from pq::Unit.

◆ debounceMode()

void pq::Debounceable::debounceMode ( uint8_t mode )

inlineinherited

Sets debounce mode.

Parameters

mode	the debounce mode (DEBOUNCE_DEFAULT, DEBOUNCE_LOCK_OUT or DEBOUNCE_PROMPT_DETECT)

◆ eventTriggered()

virtual bool pq::DigitalSource::eventTriggered ( EventType eventType )

inlineprotectedvirtualinherited

Returns true iff an event of a certain type has been triggered.

Reimplemented from pq::Unit.

Reimplemented in pq::Alarm.

◆ get()

virtual float pq::DigitalUnit::get ( )

inlinevirtualinherited

Returns value as float (either 0.0 or 1.0).

Reimplemented from pq::Chainable.

◆ isOn()

virtual bool pq::DigitalSource::isOn ( )

inlinevirtualinherited

Returns true iff the input is "on".

Reimplemented from pq::DigitalUnit.

◆ mapTo()

virtual float pq::DigitalUnit::mapTo	(	float	toLow,
		float	toHigh
	)

inlinevirtualinherited

Maps value to new range.

Reimplemented from pq::Chainable.

◆ mode()

void pq::DigitalIn::mode ( uint8_t mode )

virtual

Changes the mode of the component.

Reimplemented from pq::PinConfig.

◆ put()

virtual float pq::DigitalUnit::put ( float value )

inlinevirtualinherited

Pushes value into the unit.

Parameters

value the value sent to the unit

Returns: the new value of the unit

Reimplemented from pq::Chainable.

Reimplemented in pq::PeakDetector.

◆ putOn()

virtual bool pq::DigitalSource::putOn ( bool value )

inlinevirtualinherited

Pushes value into the unit.

Parameters

value the value sent to the unit

Returns: the new value of the unit

Reimplemented from pq::DigitalUnit.

◆ step()

void pq::DigitalIn::step ( )

protectedvirtual

Reimplemented from pq::Unit.

The documentation for this class was generated from the following files:

/home/tats/Documents/workspace/Plaquette/src/PqInputs.h
/home/tats/Documents/workspace/Plaquette/src/PqInputs.cpp
