pq::MinMaxScaler Class Reference

Regularizes signal into [0,1] by rescaling it using the min and max values. More...

#include <MinMaxScaler.h>

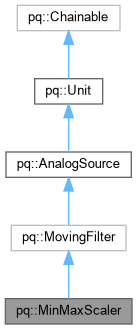

Inheritance diagram for pq::MinMaxScaler:

Collaboration diagram for pq::MinMaxScaler:

Public Member Functions
	MinMaxScaler (Engine &engine=Engine::primary())
	Default constructor.
	MinMaxScaler (float timeWindow, Engine &engine=Engine::primary())
	Constructor with time window.
float	minValue () const
	Returns the current min. value.
float	maxValue () const
	Returns the current max. value.
virtual void	infiniteTimeWindow ()
	Sets time window to infinite.
virtual void	timeWindow (float seconds)
	Changes the time window (expressed in seconds).
virtual float	timeWindow () const
	Returns the time window (expressed in seconds).
virtual bool	timeWindowIsInfinite () const
	Returns true if time window is infinite.
virtual void	reset ()
	Resets the moving filter.
virtual float	put (float value)
	Pushes value into the unit.
virtual void	cutoff (float hz)
	Changes the time window cutoff frequency (expressed in Hz).
virtual float	cutoff () const
	Returns the time window cutoff frequency (expressed in Hz).
virtual void	resumeCalibrating ()
	Switches to calibration mode (default).
virtual void	pauseCalibrating ()
	Switches to non-calibration mode: calls to put(value) will return filtered value without updating the normalization statistics.
virtual void	toggleCalibrating ()
	Toggles calibration mode.
virtual bool	isCalibrating () const
	Returns true iff the moving filter is in calibration mode.
virtual float	get ()
	Returns value in [0, 1].
virtual float	mapTo (float toLow, float toHigh)
	Maps value to new range.
virtual void	clearEvents ()
float	seconds () const
	Returns engine time in seconds.
uint32_t	milliSeconds () const
	Returns engine time in milliseconds.
uint64_t	microSeconds () const
	Returns engine time in microseconds.
unsigned long	nSteps () const
	Returns number of engine steps.
float	sampleRate () const
	Returns engine sample rate.
float	samplePeriod () const
	Returns enginesample period.
	operator float ()
	Object can be used directly to access its value.
	operator bool ()
	Operator that allows usage in conditional expressions.

Static Public Member Functions
static bool	analogToDigital (float f)
	Converts analog (float) value to digital (bool) value.
static float	digitalToAnalog (bool b)
	Converts digital (bool) value to analog (float) value.

Protected Member Functions
virtual void	step ()
virtual void	begin ()
virtual bool	eventTriggered (EventType eventType)
	Returns true iff an event of a certain type has been triggered.
virtual void	onEvent (EventCallback callback, EventType eventType)
	Registers event callback.
Engine *	engine () const
	Returns the engine that owns this unit.

Protected Attributes
float	_timeWindow
float	_minValue
float	_maxValue
float	_smoothedMinValue
float	_smoothedMaxValue
unsigned int	_nSamples
float	_currentValueStep
bool	_isCalibrating: 1
uint8_t	_nValuesStep: 7
float	_value

Detailed Description

Regularizes signal into [0,1] by rescaling it using the min and max values.

Constructor & Destructor Documentation

MinMaxScaler() [1/2]

pq::MinMaxScaler::MinMaxScaler

(

Engine &

engine = Engine::primary()

)

Default constructor.

Assigns infinite time window.

Parameters

engine

the engine running this unit

MinMaxScaler() [2/2]

pq::MinMaxScaler::MinMaxScaler	(	float	timeWindow,
		Engine &	engine = Engine::primary()
	)

Constructor with time window.

Parameters

timeWindow	the time window (in seconds)
engine	the engine running this unit

Member Function Documentation

eventTriggered()

virtual bool pq::Unit::eventTriggered ( EventType  eventType )

inlineprotectedvirtualinherited

Returns true iff an event of a certain type has been triggered.

Reimplemented in pq::AbstractWave, pq::Alarm, pq::Metronome, pq::PeakDetector, pq::DigitalSource, pq::Ramp, pq::StreamIn, and pq::TimeSliceField< COUNT >.

get()

virtual float pq::AnalogSource::get ( )

inlinevirtualinherited

Returns value in [0, 1].

Reimplemented from pq::Chainable.

Reimplemented in pq::AbstractWave.

infiniteTimeWindow()

void pq::MinMaxScaler::infiniteTimeWindow ( )

virtual

Sets time window to infinite.

Implements pq::MovingFilter.

mapTo()

virtual float pq::AnalogSource::mapTo ( float  toLow, float  toHigh  )

inlinevirtualinherited

Maps value to new range.

Reimplemented from pq::Chainable.

Reimplemented in pq::Normalizer, pq::StreamIn, and pq::StreamOut.

put()

float pq::MinMaxScaler::put ( float  value )

virtual

Pushes value into the unit.

If isRunning() is false the filter will not be updated but will just return the filtered value.

Parameters

value

the value sent to the unit

Returns

the new value of the unit

Reimplemented from pq::Chainable.

reset()

void pq::MinMaxScaler::reset ( )

virtual

Resets the moving filter.

Reimplemented from pq::MovingFilter.

resumeCalibrating()

void pq::MovingFilter::resumeCalibrating ( )

virtualinherited

Switches to calibration mode (default).

Calls to put(value) will return filtered value AND update the normalization statistics.

step()

void pq::MinMaxScaler::step ( )

protectedvirtual

Reimplemented from pq::Unit.

timeWindow() [1/2]

float pq::MinMaxScaler::timeWindow ( ) const

virtual

Returns the time window (expressed in seconds).

Implements pq::MovingFilter.

timeWindow() [2/2]

void pq::MinMaxScaler::timeWindow ( float  seconds )

virtual

Changes the time window (expressed in seconds).

Implements pq::MovingFilter.

timeWindowIsInfinite()

bool pq::MinMaxScaler::timeWindowIsInfinite ( ) const

virtual

Returns true if time window is infinite.

Implements pq::MovingFilter.

---

The documentation for this class was generated from the following files:

• /home/tats/Documents/workspace/Plaquette/src/MinMaxScaler.h
• /home/tats/Documents/workspace/Plaquette/src/MinMaxScaler.cpp
