Metronome

A digital source unit that emits a pulse at a regular pace. It is conceptually similar to an Alarm that automatically restarts after each trigger. Metronomes are ideal for triggering periodic events in interactive systems, such as blinking LEDs, synchronizing motor movements, or scheduling actions at regular intervals. Each time the metronome “ticks,” it evaluates to true for a single frame, and false otherwise.

Parameters

Name

Description

Range

Setter

Getter

Flow

period

Duration of one complete cycle.

> 0 (s)

period(v)

period()

Period()

frequency

Cycles per second (inverse of period).

> 0 (Hz)

frequency(v)

frequency()

Frequency()

bpm

Cycles per minute (alternative to frequency).

> 0

bpm(v)

bpm()

Bpm()

phase

Current point in the cycle (as % of period).

[0, 1]

phase(v)

phase()

Phase()

phaseShift

Phase offset (as % of period).

[0, 1]

phaseShift(v)

phaseShift()

PhaseShift()

jitter

Randomness level for timing variation.

[0, 1]

jitter(v)

jitter()

Jitter()

Randomization

Metronomes can be used to generated randomized patterns using the jitter() function. This makes their ticks feel less mechanical and closer to natural rhythms such as raindrops falling, typing on a keyboard, or the reactions of a living entity. When activating randomization, the metronome does not trigger at perfectly regular intervals anymore. Instead, the length of each cycle is perturbed according to the chosen randomness level. At low values (close to 0), the timing remains close to steady with gentle variation. At high values (close to 1), the ticks may cluster together or leave longer pauses, while still averaging the correct period over time. This means that even with randomness, the metronome respects its period setting in the long run, but the spacing between individual ticks is altered.

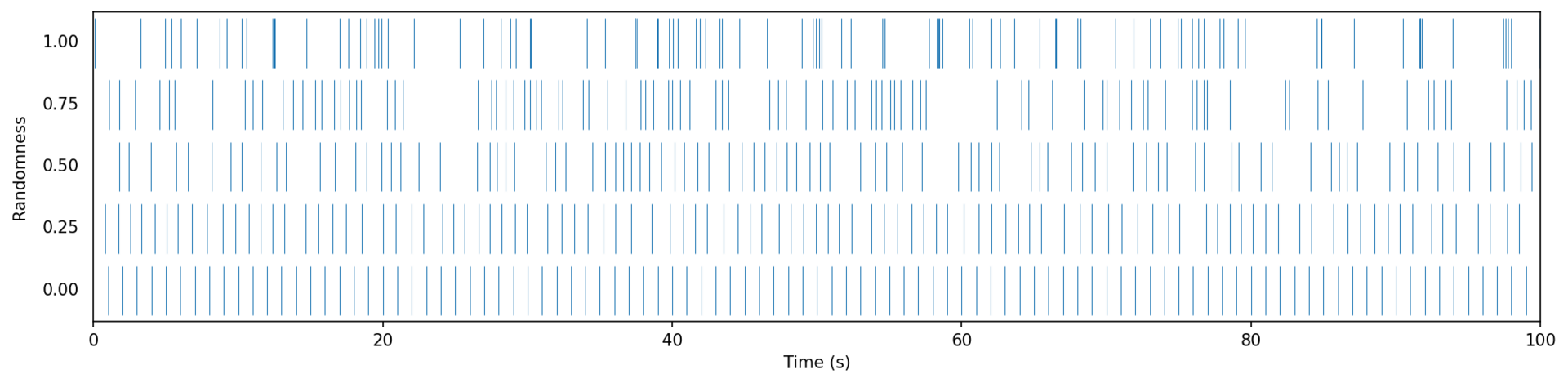

This graph shows the effect of different randomization levels on event triggers (all metronomes have a one-second period):

_images/Plaquette-Metronome-Randomize.png

Basic Example

The simplest use of a metronome is to trigger an LED blink every 0.5 seconds:

#include <Plaquette.h>

Metronome myMetro(0.5); // tick every 0.5 seconds
DigitalOut led(13);

void step() {
  if (myMetro) {
    led.toggle();
  }
}

Multiple Metronomes

You can run several metronomes in parallel to control independent events:

#include <Plaquette.h>

DigitalOut led(LED_BUILTIN);
Metronome metroFast(0.5);   // Blink at 2 Hz
Metronome metroSlow(2.0);   // Trigger every 2 seconds
Monitor monitor(115200);    // create a monitor object

void step() {
  if (metroFast) led.toggle();
  if (metroSlow) println("Tick!");
}

Randomized Metronome

The following sketch blinks the LED at an average rate of once per second, but with irregular spacing:

#include <Plaquette.h>

DigitalOut led(13);
Metronome metro(1.0); // base period of 1 second

void begin() {
  metro.jitter(1.0); // 100% jittering level
}

void step() {
  if (metro) {
    led.toggle();
  }
}

Reference

class Metronome : public pq::DigitalUnit, public pq::AbstractOscillator

Chronometer digital unit which emits 1/true/”on” for one frame, at a regular pace.

Public Functions

Metronome(Engine &engine = Engine::primary())

Constructor.

Parameters: engine – the engine running this unit

Metronome(float period, Engine &engine = Engine::primary())

Constructor.

Parameters

period – the period of oscillation (in seconds)
engine – the engine running this unit

inline virtual bool isOn(): Returns true iff the metronome fires.

virtual void onBang(EventCallback callback): Registers event callback on metronome tick (“bang”) event.

inline virtual bool isOff(): Returns true iff the input is “off”.

inline virtual int getInt(): Returns value as integer (0 or 1).

inline virtual float get(): Returns value as float (either 0.0 or 1.0).

inline virtual bool on(): Sets output to “on” (ie. true, 1).

inline virtual bool off(): Sets output to “off” (ie. false, 0).

inline virtual float put(float value)

Pushes value into the unit.

Parameters: value – the value sent to the unit
Returns: the new value of the unit

inline virtual bool putOn(bool value)

Pushes value into the unit.

Parameters: value – the value sent to the unit
Returns: the new value of the unit

inline virtual float mapTo(float toLow, float toHigh): Maps value to new range.

inline operator bool(): Operator that allows usage in conditional expressions.

inline float seconds() const: Returns engine time in seconds.

inline uint32_t milliSeconds() const: Returns engine time in milliseconds.

inline uint64_t microSeconds() const: Returns engine time in microseconds.

inline unsigned long nSteps() const: Returns number of engine steps.

inline float sampleRate() const: Returns engine sample rate.

inline float samplePeriod() const: Returns enginesample period.

virtual void start(): Starts/restarts the oscillator.

virtual void period(float period)

Sets the period (in seconds).

Parameters: period – the period of oscillation (in seconds)

inline virtual float period() const: Returns the period (in seconds).

inline Parameter Period(): Returns the period as a parameter.

virtual void frequency(float frequency)

Sets the frequency (in Hz).

Parameters: frequency – the frequency of oscillation (in Hz)

inline virtual float frequency() const: Returns the frequency (in Hz).

inline Parameter Frequency(): Returns the frequency as a parameter.

virtual void bpm(float bpm)

Sets the frequency in beats-per-minute.

Parameters: bpm – the frequency of oscillation (in BPM)

inline virtual float bpm() const: Returns the frequency (in BPM).

inline Parameter Bpm(): Returns the BPM as a parameter.

virtual void phase(float phase)

Sets the phase at % of period.

Parameters: phase – the phase (in % of period)

inline virtual float phase() const: Returns the phase (in % of period).

inline Parameter Phase(): Returns the phase as a parameter.

virtual void phaseShift(float phaseShift)

Sets the phase shift (ie.

the offset, in % of period).

Warning

This function is disabled if randomness() > 0.

Parameters: phaseShift – the phase shift (in % of period)

virtual float phaseShift() const

Returns the phase shift (ie.

the offset, in % of period).

Warning

This function always returns 0 when randomness() > 0.

inline Parameter PhaseShift(): Returns the phase shift as a parameter.

virtual void jitter(float jitter): Sets the jittering level in [0, 1] (0: no jitter, 1: max jitter).

virtual float jitter() const: Returns the randomness level in [0, 1].

inline virtual void noJitter(): Disables jittering.

inline Parameter Jitter(): Returns the jitter as a parameter.

virtual float jitteredPeriod() const

Returns the period actually used for the current cycle.

When jitter() == 0, this is identical to period(). When jitter() > 0, this returns the stochastic (jittered) period currently in effect.

virtual float jitteredFrequency() const

Returns the frequency actually used for the current cycle.

When jitter() == 0, this is identical to frequency(). When jitter() > 0, this returns the stochastic (jittered) frequency currently in effect.

virtual float timeToPhase(float time) const

Utility function to convert time to phase.

Parameters: time – relative time in seconds
Returns: the equivalent phase

virtual void setTime(float time): Forces current time (in seconds).

Warning

This function is disabled if randomness() > 0.

virtual void addTime(float time): Adds time to current time (in seconds).

Warning

This function is disabled if randomness() > 0.

inline virtual bool isRunning() const: Returns true iff the wave is currently running.

inline virtual bool isForward() const: Returns true iff the wave is moving forward in time.

inline virtual void setForward(bool isForward)

Sets the direction of oscillation.

Parameters: isForward – true iff the wave is moving forward in time

inline virtual void forward(): Sets the direction of oscillation to move forward in time.

inline virtual void reverse(): Sets the direction of oscillation to move backward in time.

inline virtual void toggleReverse(): Toggles the direction of oscillation.

virtual void stop(): Interrupts and resets to zero.

virtual void pause(): Interrupts process.

virtual void resume(): Resumes process.

virtual void togglePause(): Toggles pause/unpause.

Public Static Functions

static inline bool analogToDigital(float f): Converts analog (float) value to digital (bool) value.

static inline float digitalToAnalog(bool b): Converts digital (bool) value to analog (float) value.
