pq::RobustScaler Class Reference

Regularizes signal into [0,1] using adaptive quantile tracking (robust to outliers). More...

#include <RobustScaler.h>

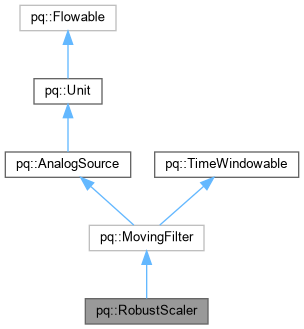

Inheritance diagram for pq::RobustScaler:

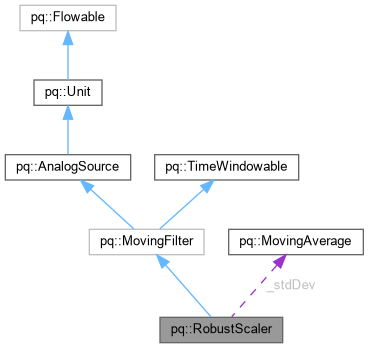

Collaboration diagram for pq::RobustScaler:

Public Member Functions
	RobustScaler (Engine &engine=Engine::primary())
	Default constructor.
	RobustScaler (float timeWindow, Engine &engine=Engine::primary())
	Constructor with custom quantile levels and time window.
	RobustScaler (float timeWindow, float span, Engine &engine=Engine::primary())
	Constructor with custom quantile levels and time window.
virtual void	span (float span)
	Sets the span (in [0, 1]) of the quantile to track.
virtual float	span () const
	Returns the current span.
virtual void	lowQuantileLevel (float level)
	Sets the low quantile level (in [0, 0.5]). Low quantile will automatically be set to 1 - low.
virtual float	lowQuantileLevel () const
	Returns the current low quantile level.
virtual void	highQuantileLevel (float level)
	Sets the high quantile level (in [0.5, 1]). Low quantile will automatically be set to 1 - high.
virtual float	highQuantileLevel () const
	Returns the current high quantile level.
virtual float	lowQuantile () const
	Returns the current low quantile.
virtual float	highQuantile () const
	Returns the current high quantile.
virtual float	stdDev () const
	Returns the current standard deviation.
virtual void	reset ()
	Resets the filter.
virtual void	reset (float estimatedMeanValue)
	Resets the filter with a prior estimate of the mean value.
virtual void	reset (float estimatedMinValue, float estimatedMaxValue)
	Resets the moving filter with a prior estimate of the min and max values.
virtual float	get ()
	Returns value of scaler.
virtual float	put (float value)
	Pushes a new value and returns the scaled output.
virtual float	filter (float value)
	Returns the filtered value (without calibrating).
virtual void	resumeCalibrating ()
	Switches to calibration mode (default).
virtual void	pauseCalibrating ()
	Switches to non-calibration mode: calls to put(value) will return filtered value without updating the normalization statistics.
virtual void	toggleCalibrating ()
	Toggles calibration mode.
virtual bool	isCalibrating () const
	Returns true iff the moving filter is in calibration mode.
unsigned int	nSamples () const
	Returns the number of samples that have been processed thus far.
virtual bool	isPreInitialized () const
	Returns true if the moving filter has been initialized with a starting range at reset.
virtual float	mapTo (float toLow, float toHigh)
	Maps value to new range.
virtual void	clearEvents ()
float	seconds () const
	Returns engine time in seconds.
uint32_t	milliSeconds () const
	Returns engine time in milliseconds.
uint64_t	microSeconds () const
	Returns engine time in microseconds.
unsigned long	nSteps () const
	Returns number of engine steps.
float	sampleRate () const
	Returns engine sample rate.
float	samplePeriod () const
	Returns enginesample period.
	operator float ()
	Object can be used directly to access its value.
	operator bool ()
	Operator that allows usage in conditional expressions.
virtual void	infiniteTimeWindow ()
	Sets time window to infinite.
virtual void	noTimeWindow ()
	Sets time window to no time window.
virtual void	timeWindow (float seconds)
	Changes the time window (expressed in seconds).
virtual float	timeWindow () const
	Returns the time window (expressed in seconds).
virtual bool	timeWindowIsInfinite () const
	Returns true if time window is infinite.
virtual void	cutoff (float hz)
	Changes the time window cutoff frequency (expressed in Hz).
virtual float	cutoff () const
	Returns the time window cutoff frequency (expressed in Hz).

Static Public Member Functions
static bool	analogToDigital (float f)
	Converts analog (float) value to digital (bool) value.
static float	digitalToAnalog (bool b)
	Converts digital (bool) value to analog (float) value.

Protected Member Functions
virtual void	step ()
void	_updateQuantile (float &q, float level, float eta, float x)
void	_initializeRange (float minValue, float maxValue)
virtual void	begin ()
virtual float	alpha () const
virtual bool	eventTriggered (EventType eventType)
	Returns true iff an event of a certain type has been triggered.
virtual void	onEvent (EventCallback callback, EventType eventType)
	Registers event callback.
Engine *	engine () const
	Returns the engine that owns this unit.

Protected Attributes
float	_quantileLevel
float	_lowQuantile
float	_highQuantile
MovingAverage	_stdDev
float	_currentStdDevStep
bool	_isCalibrating: 1
bool	_isPreInitialized: 1
uint8_t	_nValuesStep: 6
unsigned int	_nSamples
float	_value
float	_timeWindow

Detailed Description

Regularizes signal into [0,1] using adaptive quantile tracking (robust to outliers).

Constructor & Destructor Documentation

RobustScaler() [1/2]

pq::RobustScaler::RobustScaler	(	float	timeWindow,
		Engine &	engine = Engine::primary()
	)

Constructor with custom quantile levels and time window.

Parameters

timeWindow

The adaptation window in seconds.

RobustScaler() [2/2]

pq::RobustScaler::RobustScaler	(	float	timeWindow,
		float	span,
		Engine &	engine = Engine::primary()
	)

Constructor with custom quantile levels and time window.

Parameters

timeWindow	The adaptation window in seconds.
span	Corresponds to percentage coverage of value in [0, 1].

Member Function Documentation

begin()

void pq::MovingFilter::begin ( )

protectedvirtualinherited

Reimplemented from pq::Unit.

eventTriggered()

virtual bool pq::Unit::eventTriggered ( EventType  eventType )

inlineprotectedvirtualinherited

Returns true iff an event of a certain type has been triggered.

Reimplemented in pq::AbstractWave, pq::Alarm, pq::Metronome, pq::PeakDetector, pq::DigitalSource, pq::Ramp, pq::StreamIn, and pq::TimeSliceField< COUNT >.

filter()

float pq::RobustScaler::filter ( float  value )

virtual

Returns the filtered value (without calibrating).

Implements pq::MovingFilter.

get()

virtual float pq::RobustScaler::get ( )

inlinevirtual

Returns value of scaler.

Reimplemented from pq::AnalogSource.

mapTo()

virtual float pq::AnalogSource::mapTo ( float  toLow, float  toHigh  )

inlinevirtualinherited

Maps value to new range.

Reimplemented from pq::Flowable.

Reimplemented in pq::Normalizer, pq::StreamIn, and pq::StreamOut.

put()

float pq::RobustScaler::put ( float  value )

virtual

Pushes a new value and returns the scaled output.

Reimplemented from pq::Flowable.

reset() [1/3]

void pq::RobustScaler::reset ( )

virtual

Resets the filter.

Reimplemented from pq::MovingFilter.

reset() [2/3]

void pq::RobustScaler::reset ( float  estimatedMeanValue )

virtual

Resets the filter with a prior estimate of the mean value.

Reimplemented from pq::MovingFilter.

reset() [3/3]

void pq::RobustScaler::reset ( float  estimatedMinValue, float  estimatedMaxValue  )

virtual

Resets the moving filter with a prior estimate of the min and max values.

Reimplemented from pq::MovingFilter.

resumeCalibrating()

void pq::MovingFilter::resumeCalibrating ( )

virtualinherited

Switches to calibration mode (default).

Calls to put(value) will return filtered value AND update the normalization statistics.

step()

void pq::RobustScaler::step ( )

protectedvirtual

Reimplemented from pq::Unit.

---

The documentation for this class was generated from the following files:

• /home/tats/Documents/workspace/Plaquette/src/RobustScaler.h
• /home/tats/Documents/workspace/Plaquette/src/RobustScaler.cpp
