pq::DigitalUnit Class Reference

A generic class representing a simple digital (true/false)unit. More...

#include <PqCore.h>

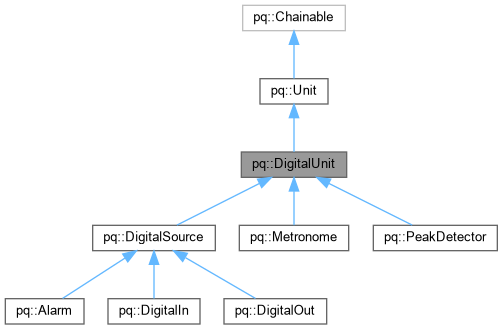

Inheritance diagram for pq::DigitalUnit:

Collaboration diagram for pq::DigitalUnit:

Public Member Functions
virtual bool	isOn ()
	Returns true iff the input is "on".
virtual bool	isOff ()
	Returns true iff the input is "off".
virtual int	getInt ()
	Returns value as integer (0 or 1).
virtual float	get ()
	Returns value as float (either 0.0 or 1.0).
virtual bool	on ()
	Sets output to "on" (ie. true, 1).
virtual bool	off ()
	Sets output to "off" (ie. false, 0).
virtual float	put (float value)
	Pushes value into the unit.
virtual bool	putOn (bool value)
	Pushes value into the unit.
virtual float	mapTo (float toLow, float toHigh)
	Maps value to new range.
	operator bool ()
	Operator that allows usage in conditional expressions.
	operator float ()
virtual void	clearEvents ()
float	seconds () const
	Returns engine time in seconds.
uint32_t	milliSeconds () const
	Returns engine time in milliseconds.
uint64_t	microSeconds () const
	Returns engine time in microseconds.
unsigned long	nSteps () const
	Returns number of engine steps.
float	sampleRate () const
	Returns engine sample rate.
float	samplePeriod () const
	Returns enginesample period.

Static Public Member Functions
static bool	analogToDigital (float f)
	Converts analog (float) value to digital (bool) value.
static float	digitalToAnalog (bool b)
	Converts digital (bool) value to analog (float) value.

Protected Member Functions
	DigitalUnit (Engine &engine)
	Constructor.
virtual void	begin ()
virtual void	step ()
virtual bool	eventTriggered (EventType eventType)
	Returns true iff an event of a certain type has been triggered.
virtual void	onEvent (EventCallback callback, EventType eventType)
	Registers event callback.
Engine *	engine () const
	Returns the engine that owns this unit.

Detailed Description

A generic class representing a simple digital (true/false)unit.

Member Function Documentation

begin()

virtual void pq::Unit::begin ( )

inlineprotectedvirtualinherited

Reimplemented in pq::Monitor.

eventTriggered()

virtual bool pq::Unit::eventTriggered ( EventType  eventType )

inlineprotectedvirtualinherited

Returns true iff an event of a certain type has been triggered.

Reimplemented in pq::AbstractWave, pq::Alarm, pq::Metronome, pq::PeakDetector, pq::DigitalSource, pq::Ramp, pq::StreamIn, and pq::TimeSliceField< COUNT >.

get()

virtual float pq::DigitalUnit::get ( )

inlinevirtual

Returns value as float (either 0.0 or 1.0).

Reimplemented from pq::Flowable.

isOn()

virtual bool pq::DigitalUnit::isOn ( )

inlinevirtual

Returns true iff the input is "on".

Reimplemented in pq::Metronome, pq::PeakDetector, and pq::DigitalSource.

mapTo()

virtual float pq::DigitalUnit::mapTo ( float  toLow, float  toHigh  )

inlinevirtual

Maps value to new range.

Reimplemented from pq::Flowable.

put()

virtual float pq::DigitalUnit::put ( float  value )

inlinevirtual

Pushes value into the unit.

Parameters

value

the value sent to the unit

Returns

the new value of the unit

Reimplemented from pq::Flowable.

Reimplemented in pq::PeakDetector.

putOn()

virtual bool pq::DigitalUnit::putOn ( bool  value )

inlinevirtual

Pushes value into the unit.

Parameters

value

the value sent to the unit

Returns

the new value of the unit

Reimplemented in pq::DigitalSource.

---

The documentation for this class was generated from the following file:

• /home/tats/Documents/workspace/Plaquette/src/PqCore.h
