Triangle/sawtooth oscillator. More...

#include <AbstractOscillator.h>

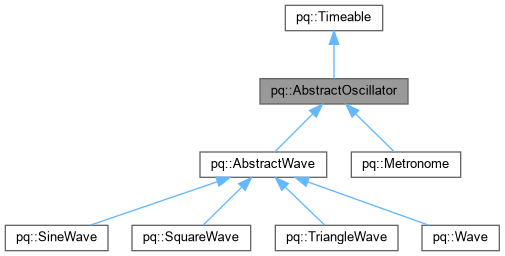

Inheritance diagram for pq::AbstractOscillator:

[legend]

Collaboration diagram for pq::AbstractOscillator:

Public Types
typedef ParameterSlot< AbstractOscillator >	Parameter

Public Member Functions
	AbstractOscillator (float period)
	Constructor.

virtual void	start ()
	Starts/restarts the oscillator.

virtual void	period (float period)
	Sets the period (in seconds).

virtual float	period () const
	Returns the period (in seconds).

Parameter	Period ()
	Returns the period as a parameter.

virtual void	frequency (float frequency)
	Sets the frequency (in Hz).

virtual float	frequency () const
	Returns the frequency (in Hz).

Parameter	Frequency ()
	Returns the frequency as a parameter.

virtual void	bpm (float bpm)
	Sets the frequency in beats-per-minute.

virtual float	bpm () const
	Returns the frequency (in BPM).

Parameter	Bpm ()
	Returns the BPM as a parameter.

virtual void	phase (float phase)
	Sets the phase at % of period.

virtual float	phase () const
	Returns the phase (in % of period).

Parameter	Phase ()
	Returns the phase as a parameter.

virtual void	phaseShift (float phaseShift)
	Sets the phase shift (ie.

virtual float	phaseShift () const
	Returns the phase shift (ie.

Parameter	PhaseShift ()
	Returns the phase shift as a parameter.

virtual void	jitter (float jitter)
	Sets the jittering level in [0, 1] (0: no jitter, 1: max jitter).

virtual float	jitter () const
	Returns the randomness level in [0, 1].

virtual void	noJitter ()
	Disables jittering.

Parameter	Jitter ()
	Returns the jitter as a parameter.

virtual float	jitteredPeriod () const
	Returns the period actually used for the current cycle.

virtual float	jitteredFrequency () const
	Returns the frequency actually used for the current cycle.

virtual float	timeToPhase (float time) const
	Utility function to convert time to phase.

virtual void	setTime (float time)
	Forces current time (in seconds).

virtual void	addTime (float time)
	Adds time to current time (in seconds).

virtual bool	isRunning () const
	Returns true iff the wave is currently running.

virtual bool	isForward () const
	Returns true iff the wave is moving forward in time.

virtual void	setForward (bool isForward)
	Sets the direction of oscillation.

virtual void	forward ()
	Sets the direction of oscillation to move forward in time.

virtual void	reverse ()
	Sets the direction of oscillation to move backward in time.

virtual void	toggleReverse ()
	Toggles the direction of oscillation.

virtual void	stop ()
	Interrupts and resets to zero.

virtual void	pause ()
	Interrupts process.

virtual void	resume ()
	Resumes process.

virtual void	togglePause ()
	Toggles pause/unpause.

Protected Member Functions
bool	_hasJitter () const

void	_stepPhase (float deltaTimeSecondsTimesFixed32Max)

virtual void	_setPhase32 (q0_32u_t phase32)

virtual void	_setRunning (bool isRunning)

void	_randomPickNext ()

Protected Attributes
float	_period

float	_frequency

float	_phaseShiftOrRandomFrequencyRatio

q0_32u_t	_phase32

bool	_overflowed: 1

bool	_isRunning: 1

bool	_isForward: 1

bool	_valueNeedsUpdate: 1

bool	_preSkew: 1

bool	_passedSkew: 1

uint8_t	_data: 2

float	_jitter

Detailed Description

Triangle/sawtooth oscillator.

Constructor & Destructor Documentation

◆ AbstractOscillator()

pq::AbstractOscillator::AbstractOscillator ( float period )

Constructor.

Parameters

period the period of oscillation (in seconds)

Member Function Documentation

◆ _setRunning()

void pq::AbstractOscillator::_setRunning ( bool isRunning )

protectedvirtual

Implements pq::Timeable.

◆ addTime()

void pq::AbstractOscillator::addTime ( float time )

virtual

Adds time to current time (in seconds).

Warning: This function is disabled if randomness() > 0.

Implements pq::Timeable.

◆ bpm()

void pq::AbstractOscillator::bpm ( float bpm )

virtual

Sets the frequency in beats-per-minute.

Parameters

bpm	the frequency of oscillation (in BPM)

◆ frequency()

void pq::AbstractOscillator::frequency ( float frequency )

virtual

Sets the frequency (in Hz).

Parameters

frequency the frequency of oscillation (in Hz)

◆ isRunning()

virtual bool pq::AbstractOscillator::isRunning ( ) const

inlinevirtual

Returns true iff the wave is currently running.

Implements pq::Timeable.

◆ jitteredFrequency()

float pq::AbstractOscillator::jitteredFrequency ( ) const

virtual

Returns the frequency actually used for the current cycle.

When jitter() == 0, this is identical to frequency(). When jitter() > 0, this returns the stochastic (jittered) frequency currently in effect.

◆ jitteredPeriod()

float pq::AbstractOscillator::jitteredPeriod ( ) const

virtual

Returns the period actually used for the current cycle.

When jitter() == 0, this is identical to period(). When jitter() > 0, this returns the stochastic (jittered) period currently in effect.

◆ pause()

void pq::Timeable::pause ( )

virtualinherited

Interrupts process.

Reimplemented in pq::AbstractChronometer.

◆ period()

void pq::AbstractOscillator::period ( float period )

virtual

Sets the period (in seconds).

Parameters

period the period of oscillation (in seconds)

◆ phase()

void pq::AbstractOscillator::phase ( float phase )

virtual

Sets the phase at % of period.

Parameters

phase the phase (in % of period)

◆ phaseShift() [1/2]

float pq::AbstractOscillator::phaseShift ( ) const

virtual

Returns the phase shift (ie.

the offset, in % of period).

Warning: This function always returns 0 when randomness() > 0.

◆ phaseShift() [2/2]

void pq::AbstractOscillator::phaseShift ( float phaseShift )

virtual

Sets the phase shift (ie.

the offset, in % of period).

Parameters

phaseShift the phase shift (in % of period)

Warning: This function is disabled if randomness() > 0.

◆ resume()

void pq::Timeable::resume ( )

virtualinherited

Resumes process.

Reimplemented in pq::AbstractChronometer.

◆ setForward()

virtual void pq::AbstractOscillator::setForward ( bool isForward )

inlinevirtual

Sets the direction of oscillation.

Parameters

isForward true iff the wave is moving forward in time

◆ setTime()

void pq::AbstractOscillator::setTime ( float time )

virtual

Forces current time (in seconds).

Warning: This function is disabled if randomness() > 0.

Implements pq::Timeable.

◆ start()

void pq::AbstractOscillator::start ( )

virtual

Starts/restarts the oscillator.

Reimplemented from pq::Timeable.

◆ timeToPhase()

float pq::AbstractOscillator::timeToPhase ( float time ) const

virtual

Utility function to convert time to phase.

Parameters

time	relative time in seconds

Returns: the equivalent phase

The documentation for this class was generated from the following files:

/home/tats/Documents/workspace/Plaquette/src/AbstractOscillator.h
/home/tats/Documents/workspace/Plaquette/src/AbstractOscillator.cpp
